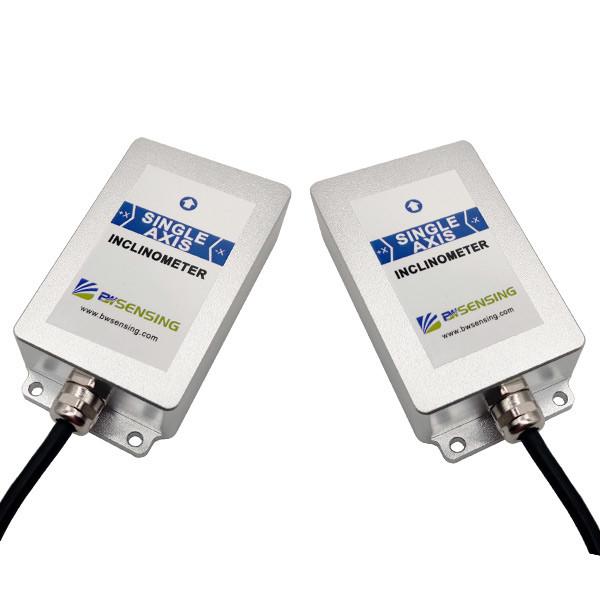

BWH517 High-Precision Modbus Single Axis Inclinometer Accuracy0.003° RS232/RS485/TTL Optional Surveying And Mapping
Introduction:
BWH517 has a measurement range of ± 30 ° and an accuracy of 0.003 °. It is a single axis high-precision inclination sensor with high cost performance, MEMS technology and digital output. It adopts the principle of non-contact measurement and directly outputs the current attitude angle through digital mode. It has the advantages of small volume, simple use, strong ability to withstand vibration and impact and strong resistance to external electromagnetic interference.
Performance Index:
| Measurement range (°) | Condition | ±15 | ±30 |
| Measurement axis | | X | X |
| Accuracy(°) | Highest | 0.003 | 0.005 |
| Resolution(°) | Completely still | 0.0007 | 0.0007 |
| Zero bias (°/℃) | -40~85℃ | ±0.0007 | ±0.0007 |
| Start-up time | | ＜3s | ＜3s |
| Output frequency (Hz) | 5-100Hz adjustable | Up to 100 | Up to 100 |
| Mean time between failures MTBF | ≥90000 hours | |
| Electromagnetic compatibility | According to GBT17626 | |
| Insulation resistance | ≥100 MΩ | |
| Impact resistance | 2000g,0.5ms,3times/axis | |
Application:
● Lifting equipment inclination control
● Industrial automation attitude control
● High-precision platform leveling
● Wind tower tilt monitoring
● Bridge and dam monitoring
BWSENSING's Accuracy Traceability System:
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
Product Tags:
|
|

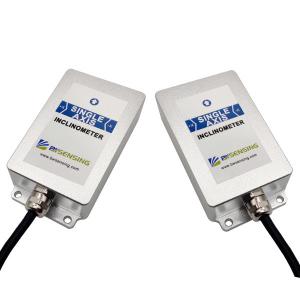

BWH517 High-Precision Modbus Single Axis Inclinometer Tiltmeter Accuracy0.003° RS232/RS485/TTL Optional Images
|
